ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
42

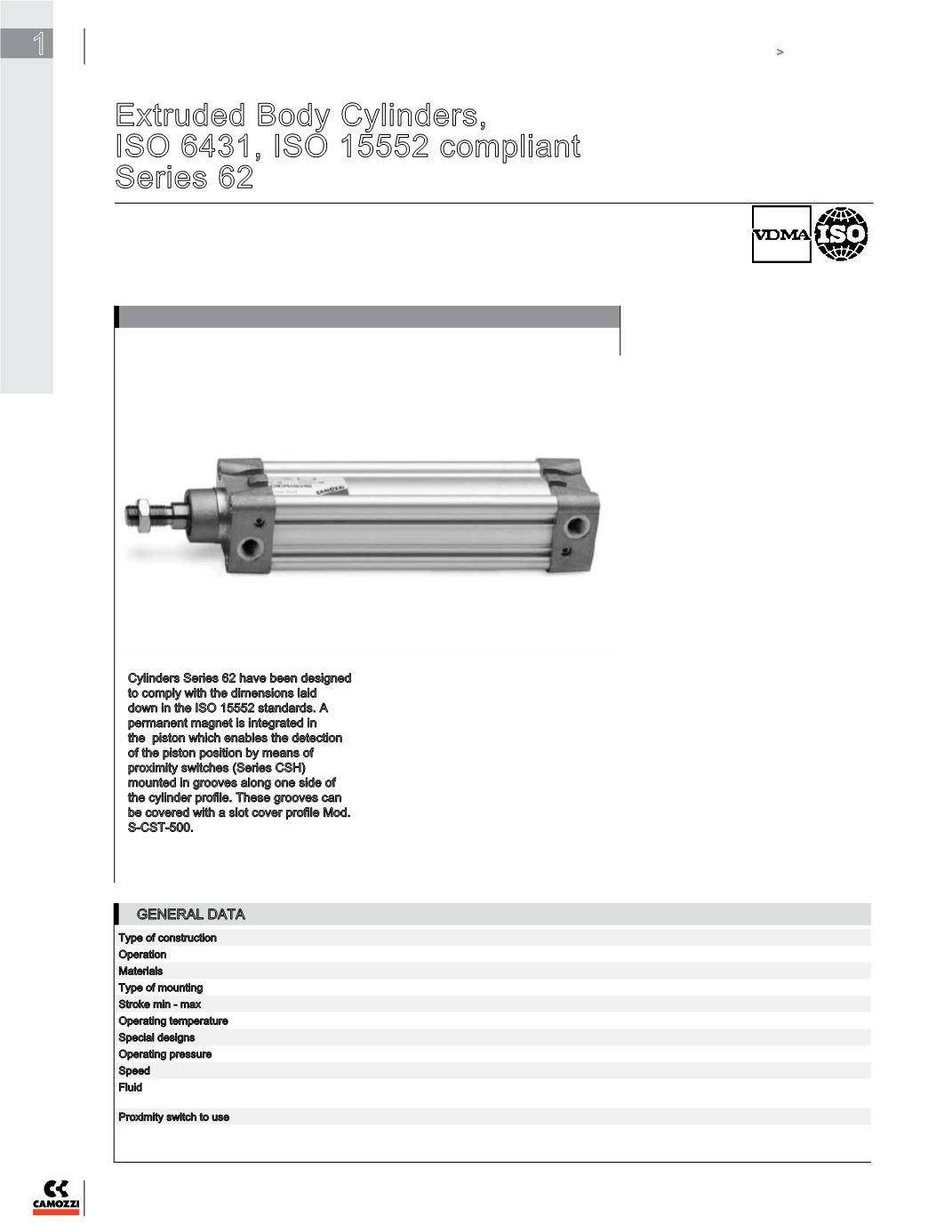

Extruded Body Cylinders,
ISO 6431, ISO 15552 compliant
Series 62
Double-acting, magnetic, cushioned
ø 32, 40, 50, 63, 80, 100, (ISO 15552)
Cylinders Series 62 have been designed
to comply with the dimensions laid
down in the ISO 15552 standards. A
permanent magnet is integrated in
the piston which enables the detection
of the piston position by means of
proximity switches (Series CSH)
mounted in grooves along one side of
the cylinder profile. These grooves can
be covered with a slot cover profile Mod.
S-CST-500.
These cylinders are equipped with
adjustable end-stroke cushioning. They
are also equipped with a mechanical
cushioning in order to reduce the impact
of the piston as it reaches the end of the
stroke.
GENERAL DATA
»
»
In compliance with ISO
15552
standards and with
the previous DIN/ISO 6431/
VDMA 24562 standards
»
»
Rolled stainless steel rod
»
»
Clean and light design
»
»
Adjustable pneumatic
cushioning
»
»
Aluminum Profile
»
»
Composite piston
Type of construction with tie-rods (inside the profile)
Operation
double-acting
Materials
end-caps = AL, seals = NBR, piston = composite, other parts: see coding
Type of mounting
with tie-rods, front flange, rear flange, feet front and rear trunnion, swivel combination
Stroke min - max
10 – 2500
mm
Operating temperature 0°C – 80°C (with dry air -10°C) (32 - 176°F, with dry air -4°F)
Special designs
see coding example
Operating pressure
1 – 10
bar (14.5 - 145 psi)
Speed
10 – 1000
mm/sec (NO LOAD)
Fluid
filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication
should never be interrupted.
Proximity switch to use CSH
