ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
44

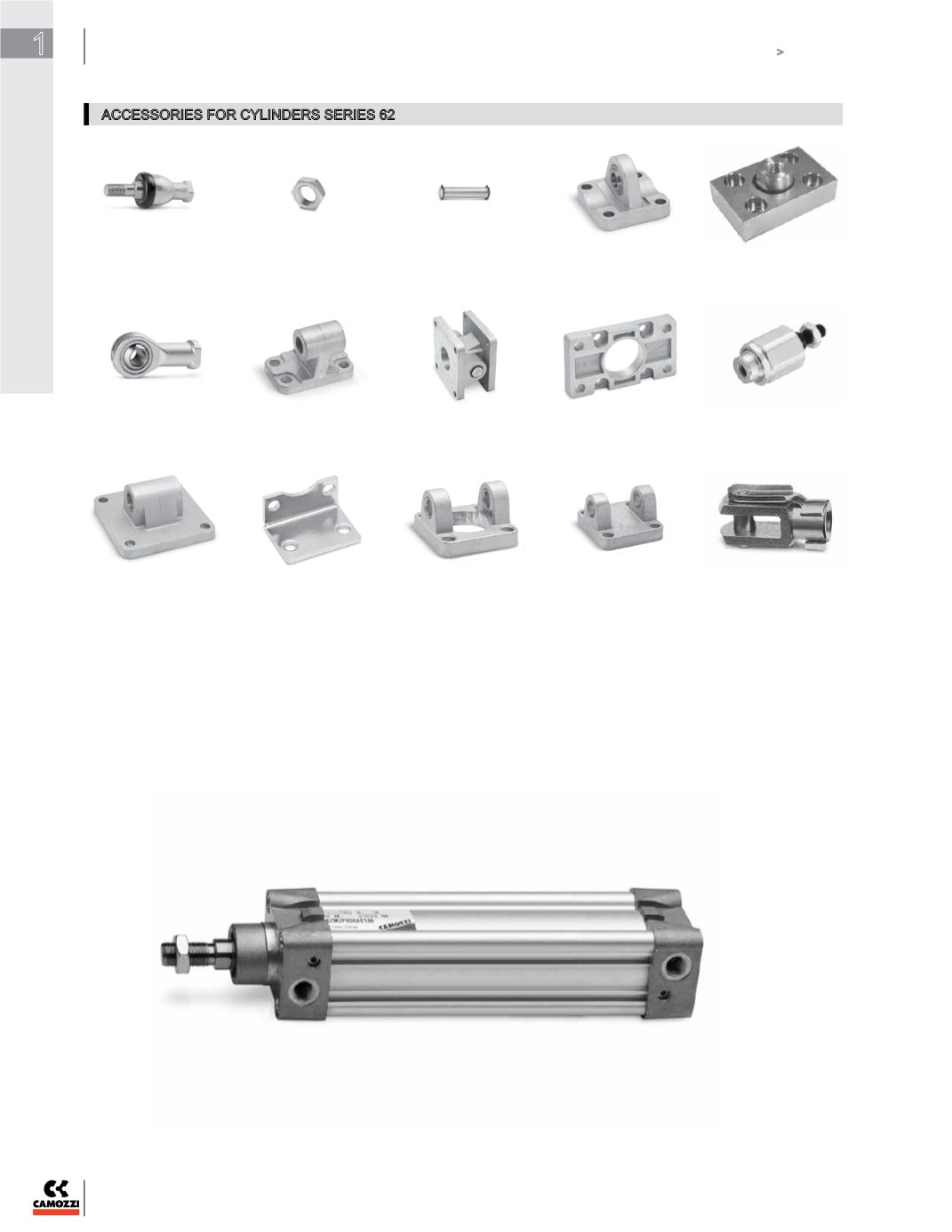

ACCESSORIES FOR CYLINDERS SERIES 62
Piston rod socket joint
Mod. GY
Piston rod nut Mod. U Clevis pin Mod. S
Rear trunnion ball-joint
Mod. R
Coupling piece
Mod. GKF
Swivel ball joint Mod. GA 90° male trunnion
Mod. ZC
Swivel Combination
Mod. I
Front and rear flange
Mod. D-E
Self aligning rod
Mod. GK
Rear trunnion male
Mod. L
Foot mount Mod. B
Front female trunnion
Mod. H and C-H
All accessories are supplied separately, except for piston rod nut Mod. U
Rear female trunnion
Mod. C and C-H
Rod fork end Mod. G
