ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
50

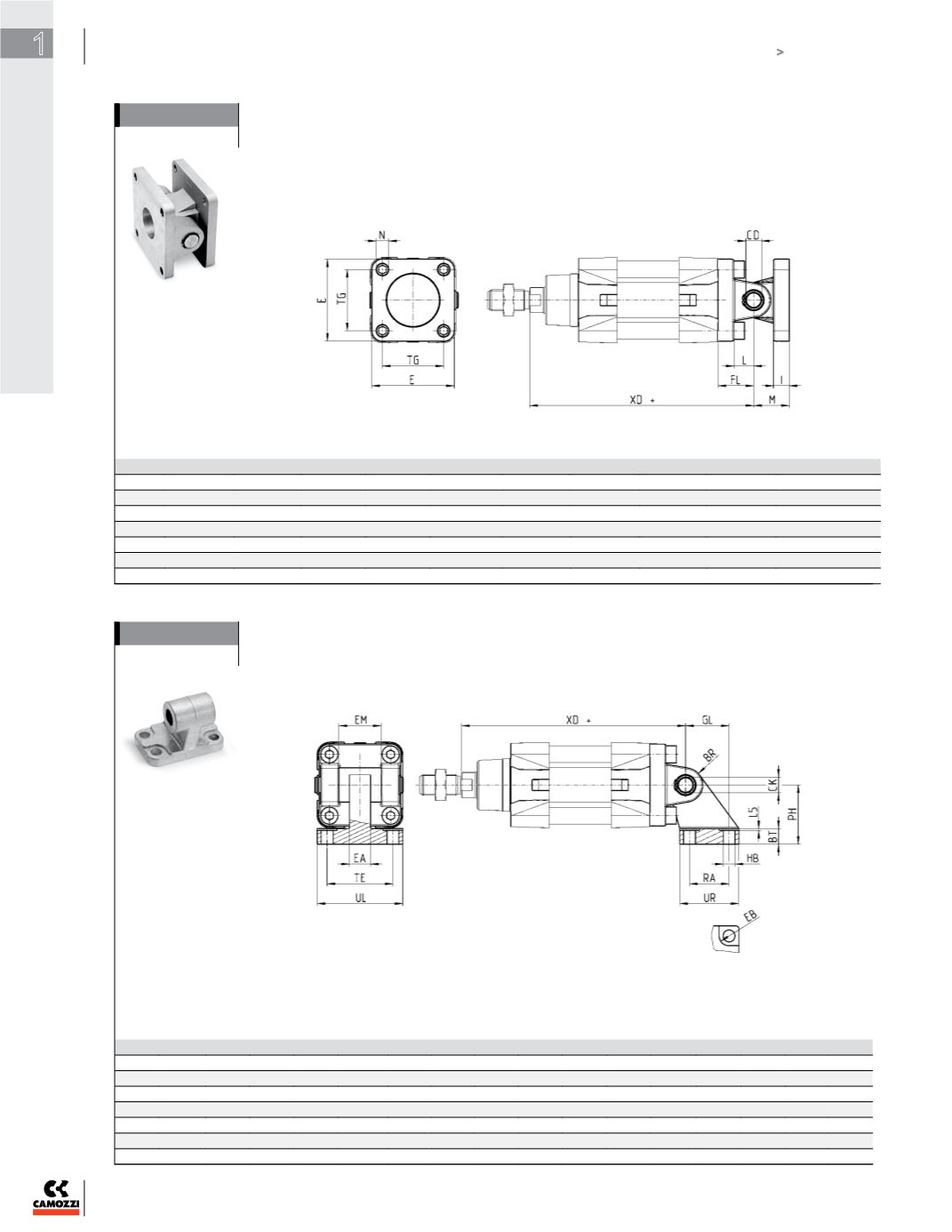

Accessory combination Mod. I (combination of models C + L + S)
Material: Aluminium
Mod.
Ø
ØCD
L
FL
XD+
MR
E
CB
UB
torque force
I-41-32
32
10
12
22
142
10
45
26
45
6
Nm
I-41-40
40
12
15
25
160
10
52
28
52
6
Nm
I-41-50
50
12
15
27
170
13
63
32
60
13
Nm
I-41-63
63
16
20
32
190
15
73
40
70
13
Nm
I-41-80
80
16
24
36
210
15
95
50
90
19
Nm
I-41-100
100
20
29
41
230
18
115
60
110
26
Nm
+ = add the stroke
90
° male trunnion Mod. ZC
CETOP RP 107P
Material: Aluminium
Mod.
Ø EB
CK
HB
XD+
TE
UL
EA
GL
L5
RA
EM UR PH BT
BR
ZC-32
32
11
10
6,6
142
38
51
10
21
1,6
18
26
31
32
8
10
ZC-40
40
11
12
6,6
160
41
54
15
24
1,6
22
28
35
36
10
11
ZC-50
50
15
12
9
170
50
65
16
33
1,6
30
32
45
45
12
13
ZC-63
63
15
16
9
190
52
67
16
37
1,6
35
40
50
50
14
15
ZC-80
80
18
16
11
210
66
86
20
47
2,5
40
50
60
63
14
15
ZC-100
100
18
20
11
230
76
96
20
55
3,2
50
60
70
71
17
19
Supplied with:
1
x male support
+ = add the stroke
