ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
51

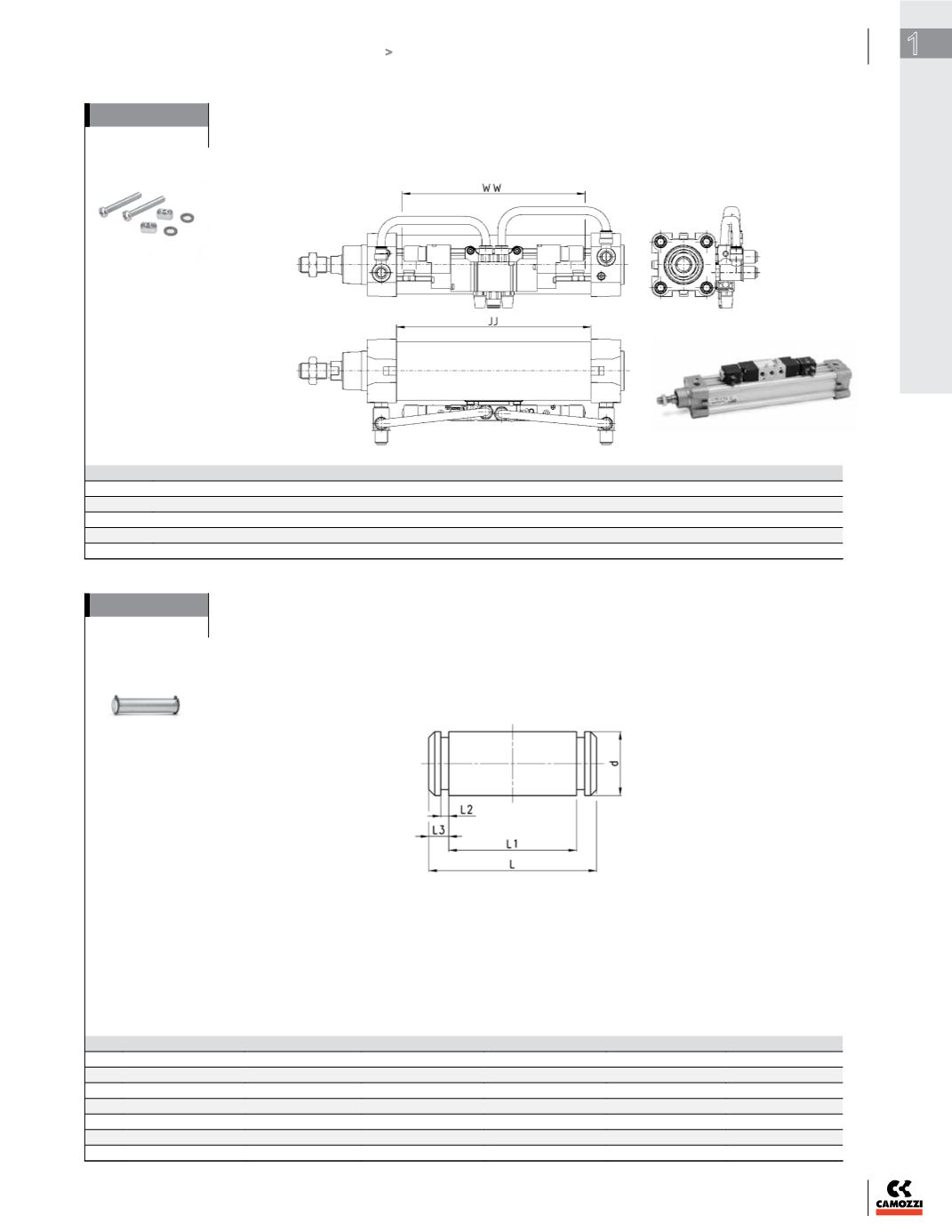

Accessory to mount valves on the cylinder
The mounting sub-base Mod. PCV enables the valve or solenoid valve to be mounted directly on the cylinder
by means of set screws that assemble through the PCV plate and into the slots of the profile extrusion.
Mod.
PCV-62-K3
to connect valves - solenoid valves Series 3
PCV-62-K4
to connect valves - solenoid valves Series 4 port G1/4
PCV-62-KEN
to connect valves - solenoid valves Series EN
PCV-62-K8
to connect valves - solenoid valves Series 4 port G1/8 and Series 3 port G1/4
Make sure that the total
lenght of the selected
valve (WW)is smaller than
the dimension JJ of the
selected cylinder.
For more information
see
products area/downloads”.
Clevis pin Mod. S
Mod.
Ø
d
L
L1
L2
L3
S-32
32
10
52
46
1,1
3
S-40
40
12
59
53
1,1
3
S-50
50
12
67
61
1,1
3
S-63
63
16
77
71
1,1
3
S-80
80
16
97
91
1,1
3
S-100
100
20
121
111
1,3
5
Supplied with:
1
x clevis pin (stainless steel 303)
2
x C-clips (plain carbon steel)
