Cylinders Series 62

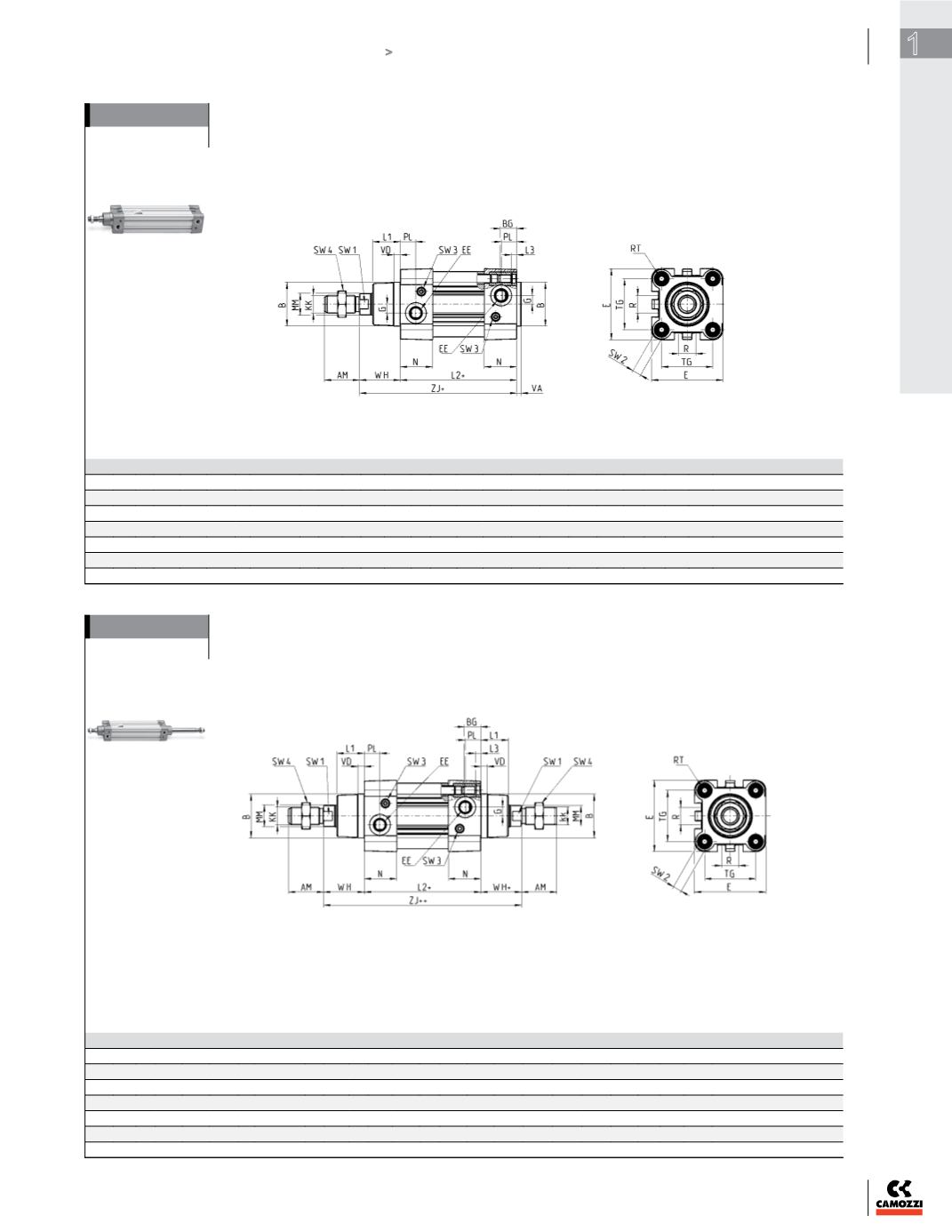

DIMENSIONS (mm)
Ø AM B BG E EE G KK L1 L2+ L3 MM N PL R RT SW1 SW2 SW3 SW4 TG VA VD WH ZJ+ front and rear cushion stroke
32
22 30 16 46
G1/8 5 M10x1,25 18 94 5 12 26 14 13 M6 10 6 2 17 32,5 4 5 26 120
17
40
24 35 16 55
G1/4 5 M12x1,25 21 105 5 16 29 15 13,5 M6 13 6 2 19 38 4 5 30 135
20
50
32 40 16 64,5
G1/4 8 M16x1,5 25 106 5 20 29,5 15 16 M8 17 8 3 24 46,5 4 6 37 143
15
63
32 45 16 75
G3/8 8 M16x1,5 26 121 5 20 36,5 21 28 M8 17 8 3 24 56,5 4 6 37 158
17
80
40 45 19 93
G3/8 8 M20x1,5 30 128 0 25 36 21 30 M10 22 10 5 30 72 4 7 46 174
20
100
40 55 19,5 110
G1/2 8 M20x1,5 35 138 0 25 38,5 23 40 M10 22 10 5 30 89 4 7 51 189
21
+ = add the stroke
Cylinders Series 62 - through-rod
DIMENSIONS (mm)
Ø AM B BG E EE G KK L1 L2+ L3 MM N PL R RT SW1 SW2 SW3 SW4 TG VD WH ZM+ front and rear cushion stroke
32
22 30 16 46
G1/8 5 M10x1,25 18 94 5 12 26 14 13 M6 10 6 2 17 32,5 5 26 146
17
40
24 35 16 55
G1/4 5 M12x1,25 21 105 5 16 29 15 13,5 M6 13 6 2 19 38 5 30 165
20
50
32 40 16 64,5
G1/4 8 M16x1,5 25 106 5 20 29,5 15 16 M8 17 8 3 24 46,5 6 37 180
15
63
32 45 16 75
G3/8 8 M16x1,5 26 121 5 20 36,5 21 28 M8 17 8 3 24 56,5 6 37 195
17
80
40 45 19 93
G3/8 8 M20x1,5 30 128 0 25 36 21 30 M10 22 10 5 30 72 7 46 220
20
100
40 55 19,5 110
G1/2 8 M20x1,5 35 138 0 25 38,5 23 40 M10 22 10 5 30 89 7 51 240
21
+ = add the stroke
++ = add the stroke two
