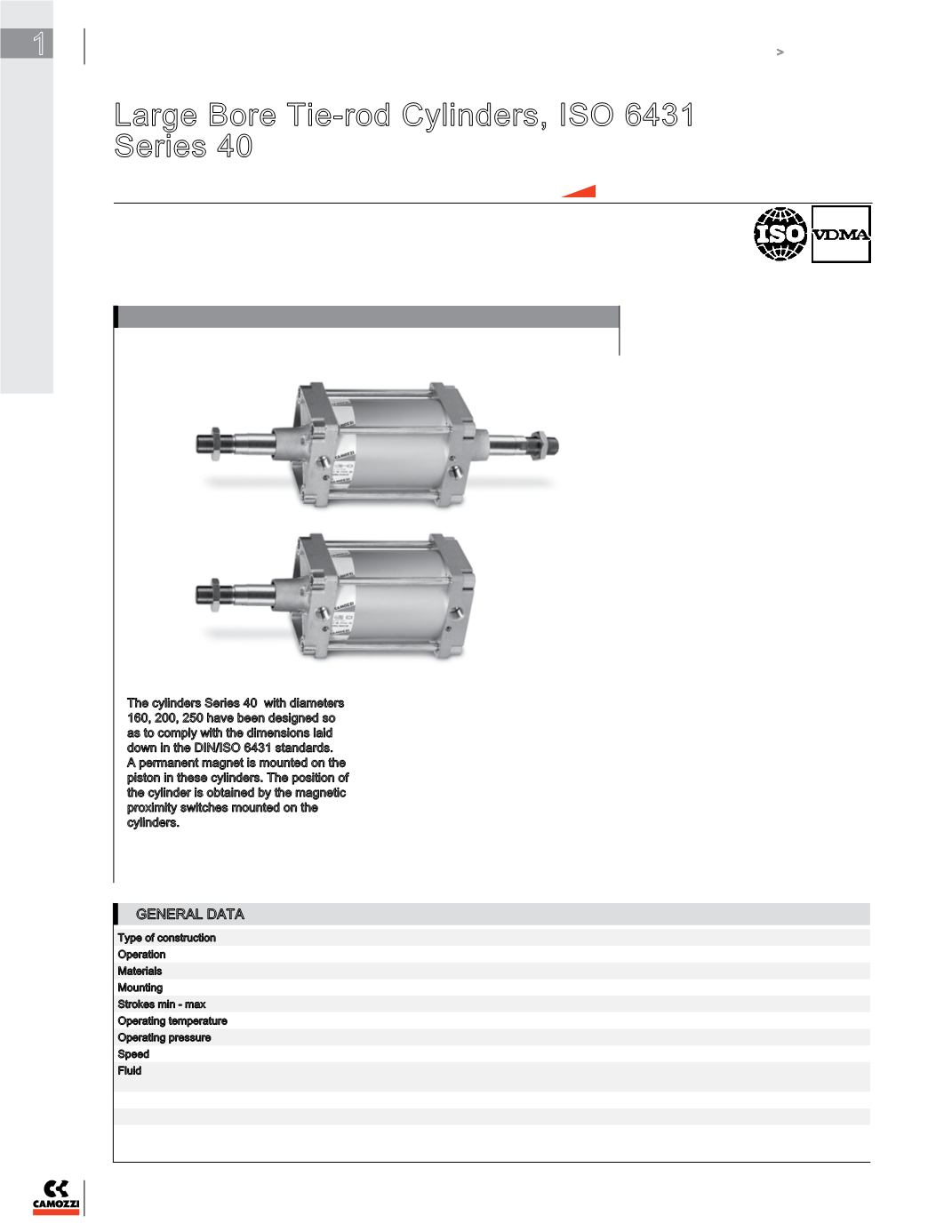

Large Bore Tie-rod Cylinders, ISO 6431
Series 40
Double acting, cushioned, magnetic
ø 160 - 200 - 250 - 320 mm (DIN/ISO 6431)
The cylinders Series 40 with diameters
160, 200, 250
have been designed so
as to comply with the dimensions laid
down in the DIN/ISO 6431 standards.
A permanent magnet is mounted on the
piston in these cylinders. The position of
the cylinder is obtained by the magnetic
proximity switches mounted on the
cylinders.
This cylinder series is normally equipped
with adjustable end-stroke cushioning.
Moreover, to reduce the noise of the
impact of the piston and end-caps, these
cylinders are equipped with a mechanical
cushioning.
GENERAL DATA
»
»
In compliance with ISO
15552
standards and with
the previous DIN/ISO 6431-
VDMA 24562 standards
»
»
Adjustable pneumatic
cushioning
»
»
Rolled stainless steel
rod (Ø 160 - 200 mm)
»
»
Chrome plated steel rod
(
Ø 250 - 320 mm)
Type of construction with tie-rods
Operation
double-acting
Materials
end-caps = aluminium - other parts: see coding
Mounting
with tie-rods, front flange, rear flange, feet, centre trunnion, front and rear trunnion, swivel combination
Strokes min - max
10 – 2500
mm
Operating temperature 0°C – 80°C (with dry air - 20°C) (32 - 176°F, with dry air -4°F)
Operating pressure
1 – 10
bar
Speed
10 – 500
mm/sec (without load)
Fluid
filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication
should never be interrupted.
