ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
55
6512

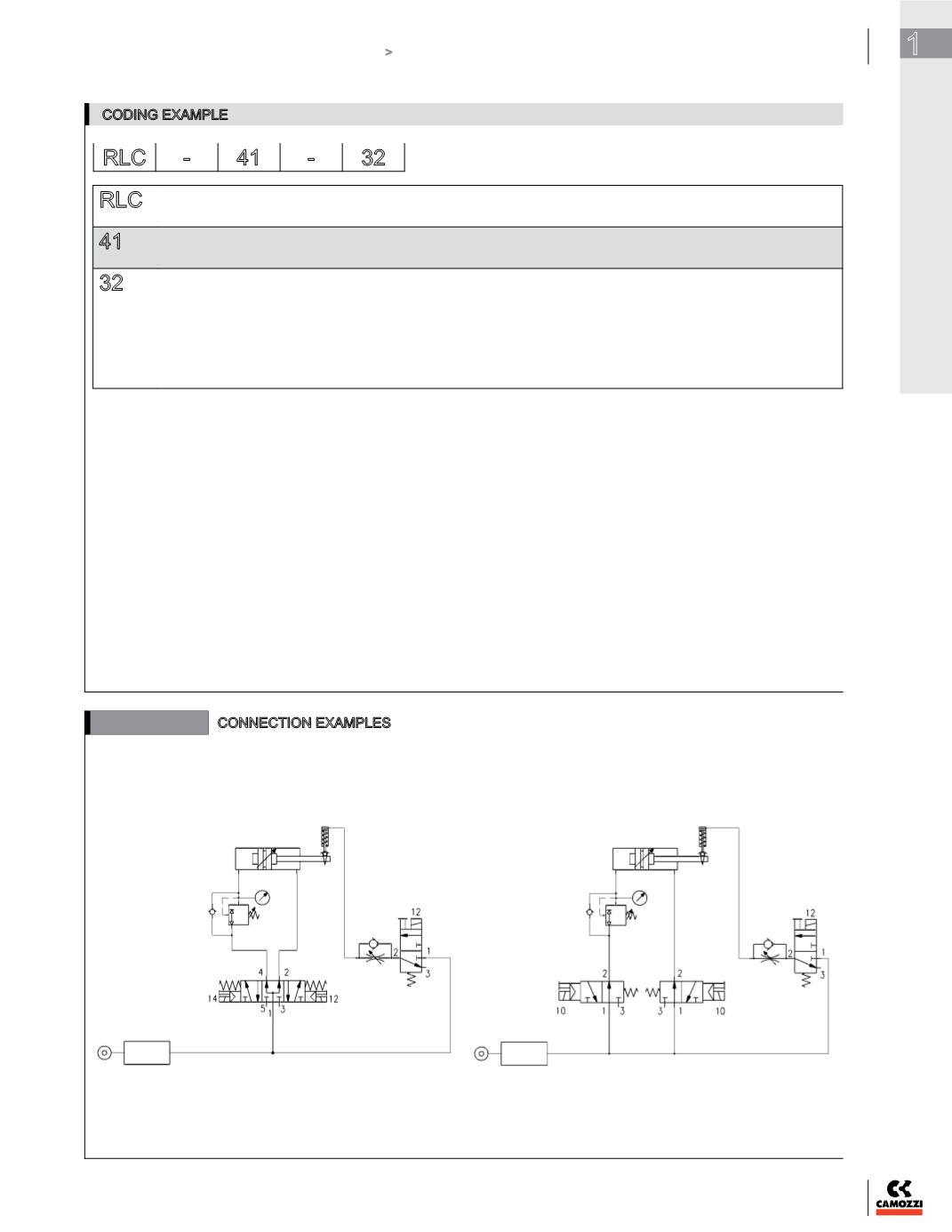

CONNECTION EXAMPLES
For a correct use of the rod lock Mod. RLC a pneumatic circuit is
recommended (as shown in the examples).
CODING EXAMPLE
RLC -
41 -
32
RLC
SERIES
RLC = standard, complete with cartridge and housing
RLB = cartridge only (spare part for existing housings already assembled)
41
CYLINDER SERIES
24
= for Series 24 and 25
41
= for Series 60, 61 and 62
32
CYLINDER DIAMETER (mm)
20
= 20 mm
25
= 25 mm
32
= 32 mm
40
= 40 mm
50
= 50 mm
63
= 63 mm
80
= 80 mm
100
= 100 mm
125
= 125 mm
