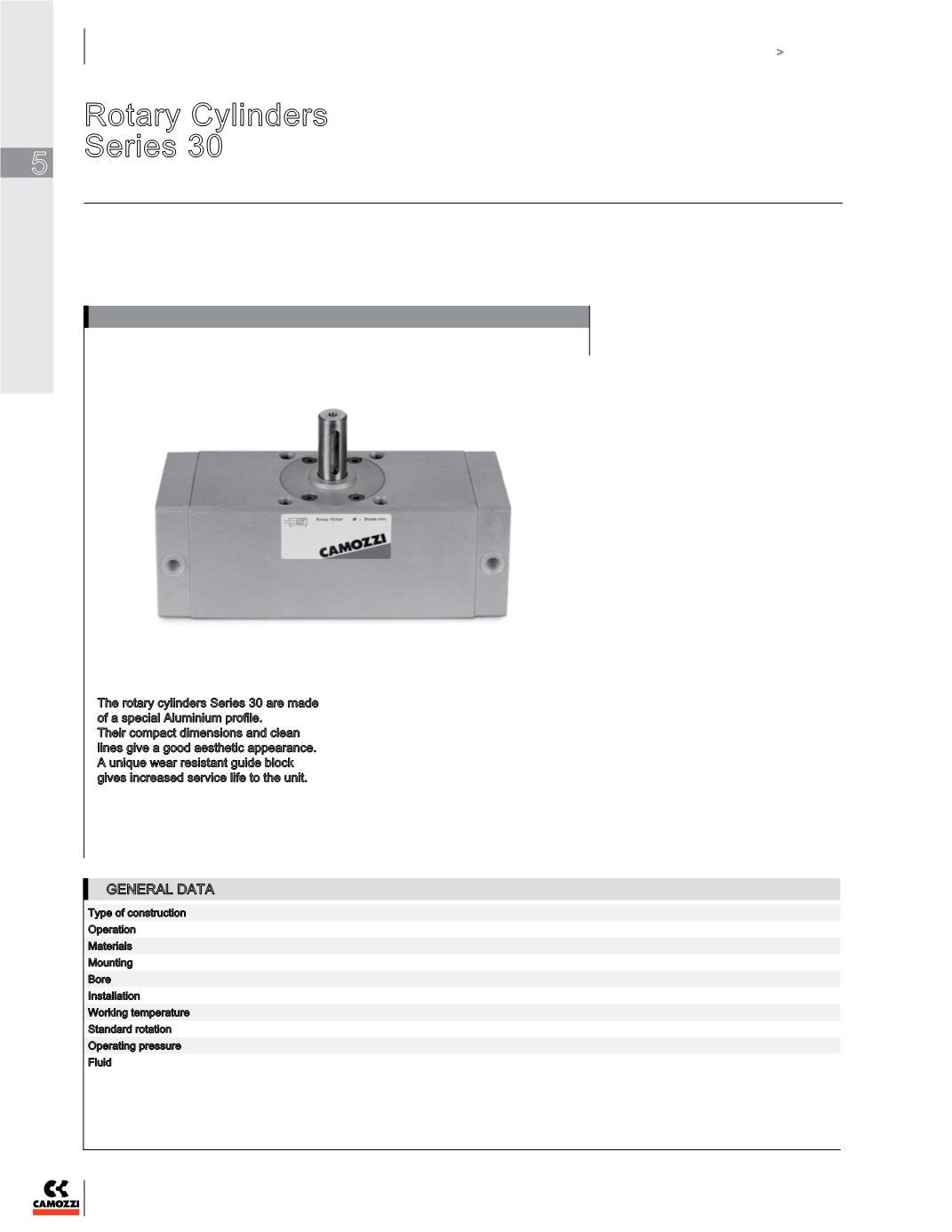

Rotary Cylinders
Series 30
Cushioned and not cushioned
ø 50 - 63 - 80 - 100
Rotational angles 90° and 180°
The rotary cylinders Series 30 are made
of a special Aluminium profile.
Their compact dimensions and clean
lines give a good aesthetic appearance.
A unique wear resistant guide block
gives increased service life to the unit.
Positioning gears are provided for the
rotations.
On the heads there is a screw which
allows rotation to be adjusted by ± 5°.
GENERAL DATA
Type of construction profile
Operation
double acting
Materials
aluminium profile body & end blocks - NBR seals - other parts - hardened steel
Mounting
by means of holes in body
Bore
ø 50 - 63 - 80 - 100
Installation
in any position
Working temperature 0°C – 50°C (- 20°C on dry air) , (32 - 125°F, with dry air -4°F)
Standard rotation
90
° - 180°
Operating pressure 0.5 – 10 bar (8 - 145 psi)
Fluid
clean air with or without lubrication
