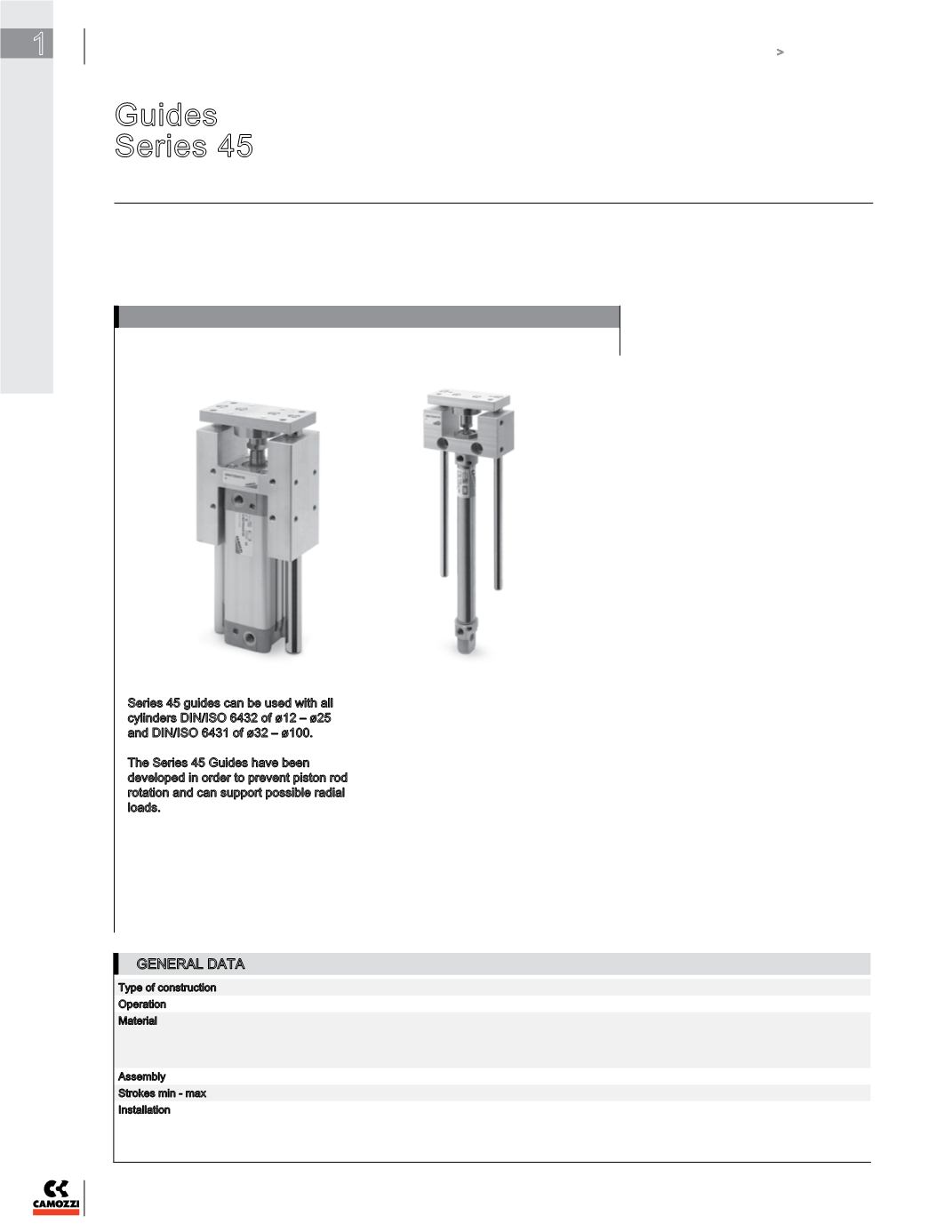

Guides
Series 45
For cylinders DIN/ISO 6432 - ø12, 16, 20, 25
For cylinders DIN/ISO 6431 - ø32, 40, 50, 63, 80, 100
Series 45 guides can be used with all
cylinders DIN/ISO 6432 of ø12 – ø25
and DIN/ISO 6431 of ø32 – ø100.
The Series 45 Guides have been
developed in order to prevent piston rod
rotation and can support possible radial
loads.
Series 45 Guides are available in three
different models depending on the
applicable loads. The UT and HT guides
with bronze bushings are self lubricating,
while HB guides have a ball-bearing
assembly for radial support.
To ensure the right choice of the loads in
relation to the stroke, please refer to the
graphs. The shorter the stroke the higher
will be the applicable loads.
GENERAL DATA
»
»
To be used with VDMA/
ISO cylinders
»
»
Available as ball bearing
guide and self lubricating
bronze bushing guide
Type of construction U and H
Operation
45
NUT and 45NHT without lubrication, 45NHB requires lubrication
Material
anodized aluminium body, rolled stainless steel AISI 420B
columns for 45UT and 45HT, hardened carbon steel C50
columns for 45HB, stainless steel flexible coupling AISI 303,
anodized aluminium plate
Assembly
by means of threaded holes
Strokes min - max see diagrams
Installation
in any position
