ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
56
ROD EXTENSION and HOLDING FORCE

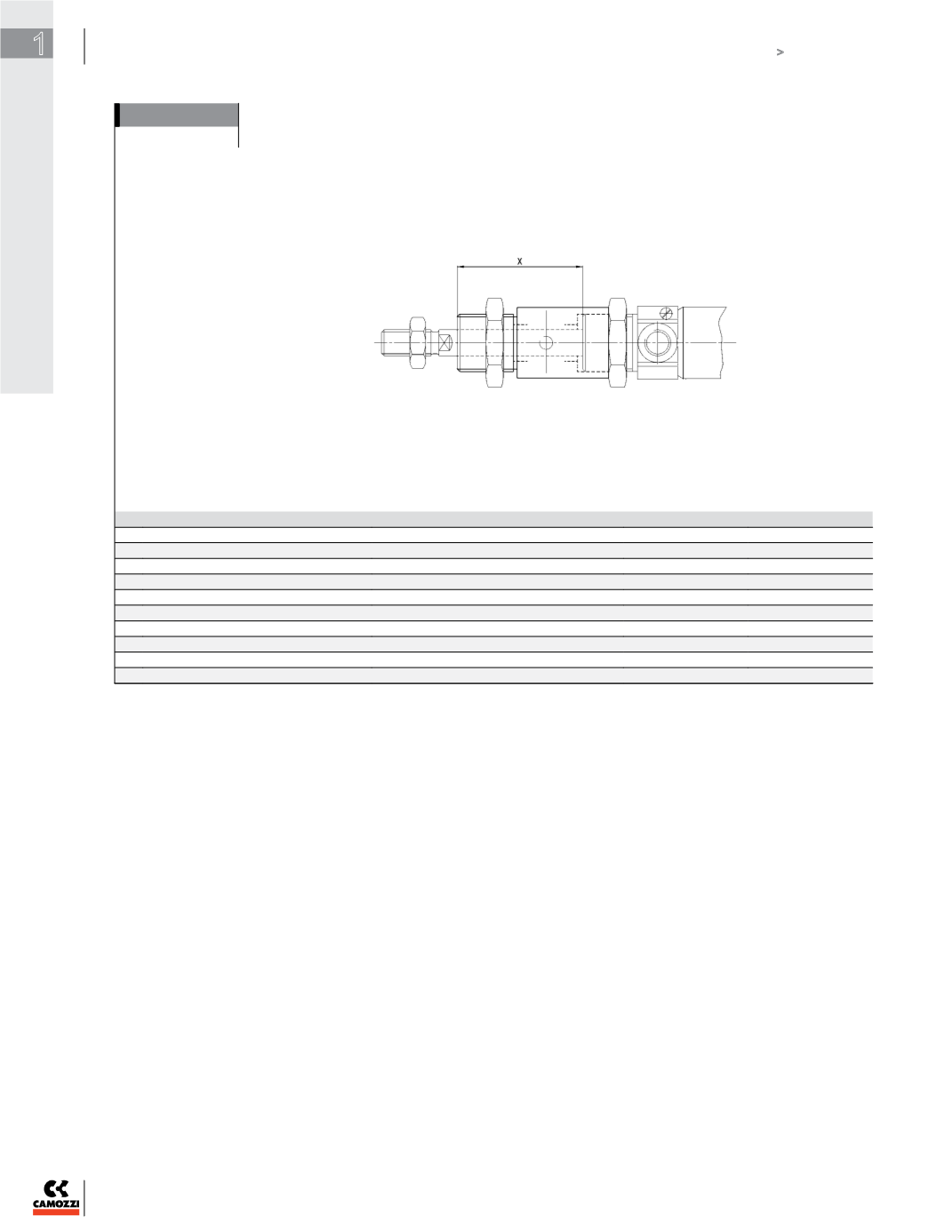

Table showing the rod extensions which are necessary for the rod lock mounting.
ø
Rod extension [X] (mm)
Holding force [static load] (N)
20
+50
300
25
+48
400
32
+40
650
40
+43
1100
50
+57
1600
63
+57
2500
80
+80
4000
100
+80
6300
125
+125
8800
