ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
61

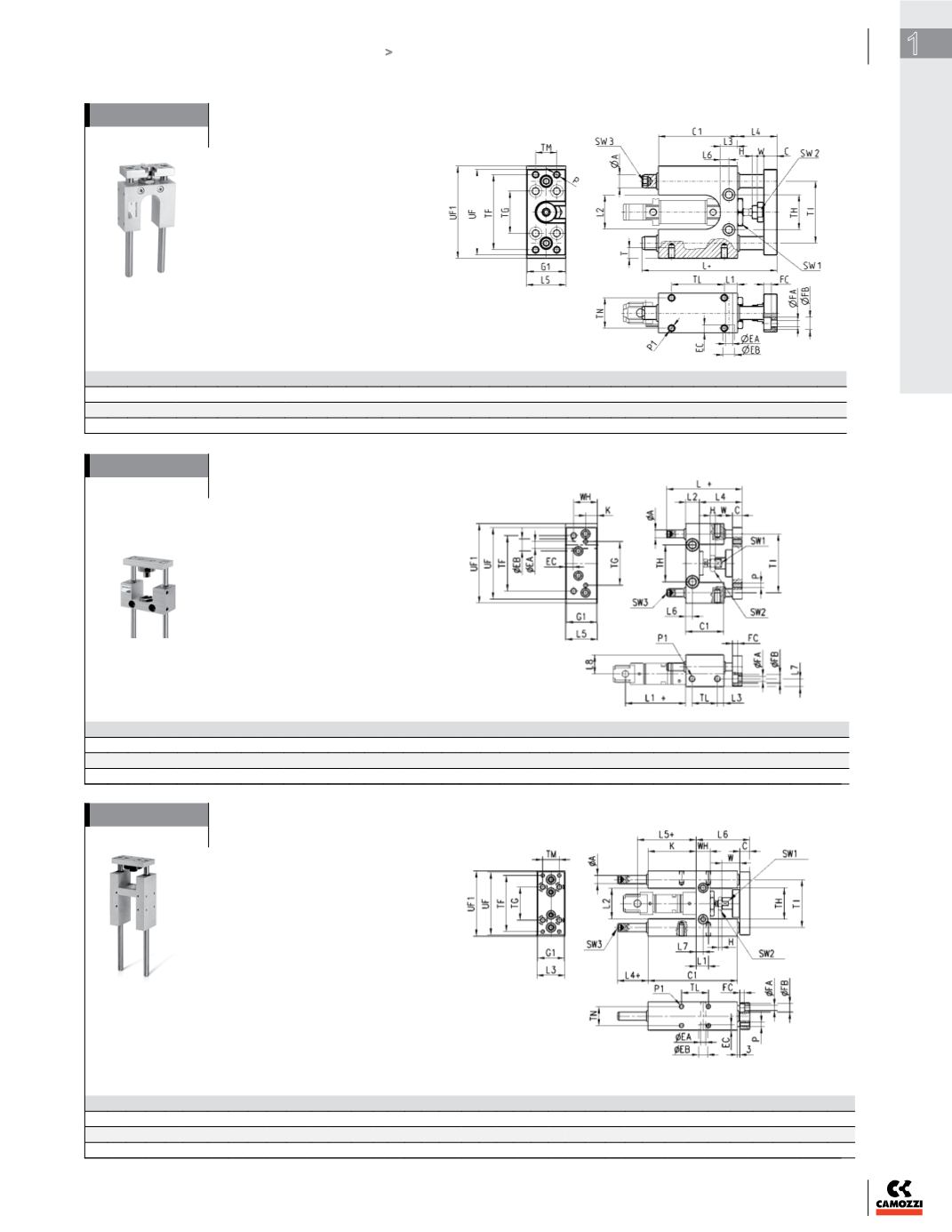

Guides Mod. 45NUT
Suitable for cylinders Series 16, 24
and 25 DIN/ISO 6432, ø 12 and 16.
These guides do not need
lubrication.
For applicable loads, see graph
N°1.
Cylinders ø 12 and ø 16 use the
same guides.
DIMENSIONS (mm)
Ø TF TG TH TI TM TL TN UF1 UF G1 ØA C1 H W C L L1 L2 L3 L4 L5 L6 P P1 T ØEA ØEB EC ØFA ØFB FC SW1 SW2 SW3
12
57 32 26,5 47 16 40 23 70 65 29 10 60 4 5 10 102,5 10 26 13 30 30 6,5
M5 M5 8 5,5 9 5,7 5,5 9,5 5,7 21 13 6
16
57 32 26,5 47 16 40 23 70 65 29 10 60 4 5 10 102,5 10 26 13 30 30 6,5
M5 M5 8 5,5 9 5,7 5,5 9,5 5,7 21 13 6
Supplied with:
1
x fixing nut.
Draw note:
+ = add the stroke
Guides Mod. 45NUT
Suitable for cylinders Series 24 and
25
DIN/ISO 6432, ø 20 and 25.
These guides do not need
lubrication.
For applicable loads, see graph
N°1.
DIMENSIONS (mm)
Ø TF TG TH TI TL UFI UF G1 ØA WH C1 H W C K L L1 L2 L3 L4 L5 L6 L7 L8 P P1 ØEA ØEB EC ØFA ØFB FC SW1 SW2
20
70 55 46,5 74 32 100 90 38 10 30 48 4 22 12 15 77 71 17 8 48
+2 40 8,5 10 24 M6 M8 9 15 9 6,5 11 6,8 13 13
25
70 55 46,5 74 32 100 90 38 10 30 48 6 22 12 15 77 76 17 8 48
+2 40 8,5 10 24 M6 M8 9 15 9 6,5 11 6,8 13 17
Supplied with:
1
x fixing nut.
Draw note:
+ = add the stroke
Guides Mod. 45NHT
Suitable for cylinders Series 24 and
25
DIN/ISO 6432, ø 20 and 25.
These guides do not need
lubrication.
For applicable loads, see graph
N°1.
DIMENSIONS (mm)
Ø TF TG TH TI TL TM TN UF G1 UF1 ØA WH C1 H W C K L L1 L2 L3 L4 L5 L6 L7 P P1 T ØEA ØEB EC ØFA ØFB FC SW1 SW2 SW3
20
68 40 38 58 32,5 20 23 76 32 79 10 17 108 4 22 12 58 160 15 37 34 37 71 65 8,5
M5 M6 14 6,5 11 6,8 5,5 10 5,7 13 13 6
25
68 40 38 58 32,5 20 23 76 32 79 10 17 108 6 17 12 58 160 15 37 34 37 76 65 8,5
M5 M6 14 6,5 11 6,8 5,5 10 5,7 13 17 6
Supplied with:
1
x fixing nut.
Draw note:
+ = add the stroke
