Guides Mod. 45NHB
Suitable for cylinders Series 24 and 25 DIN/ISO 6432, ø 20 and 25.
To lubricate these guides, use the special lubricator. For applicable loads, see graph No. 2.

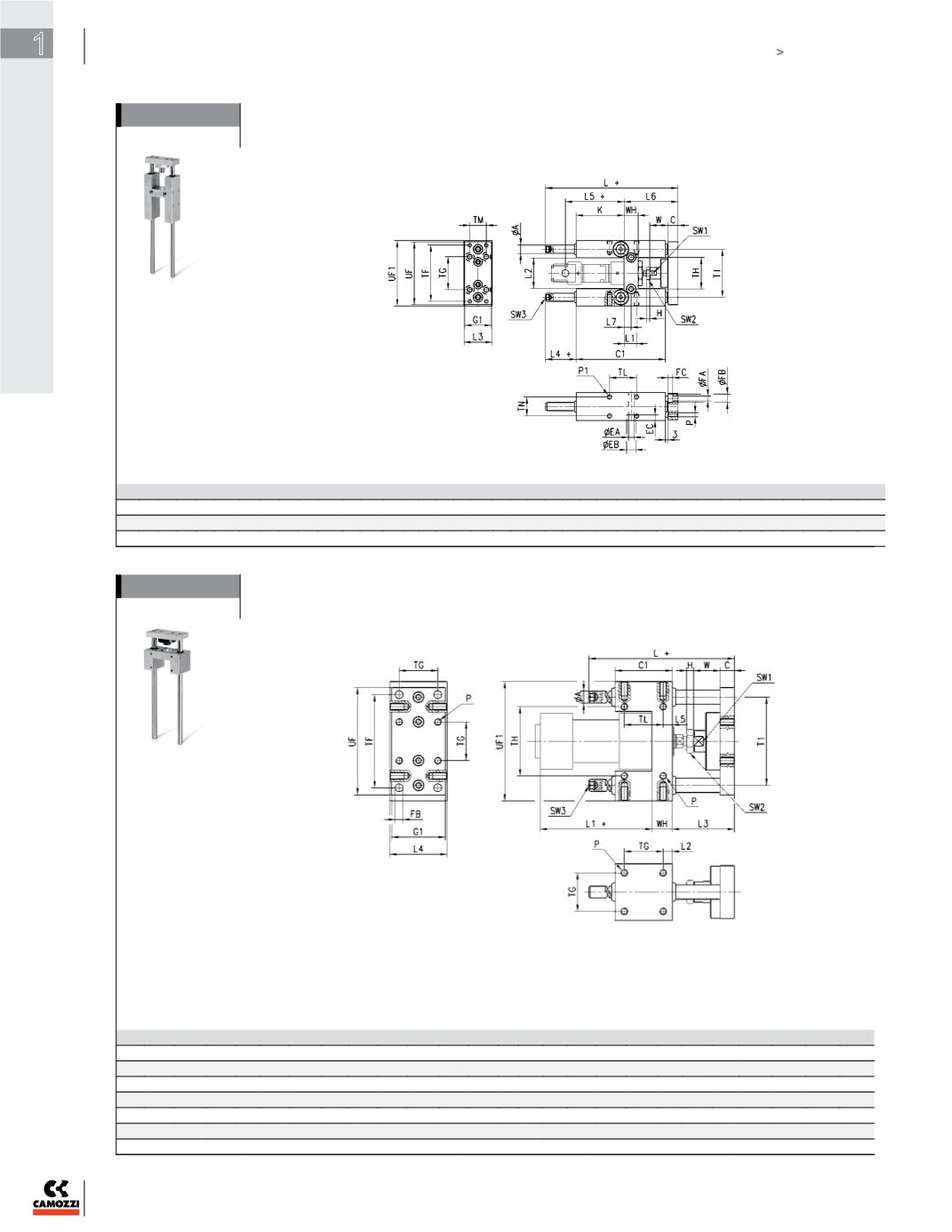

DIMENSIONS (mm)
Ø TF TG TH TI TL TM TN UF G1 UF1 A WH C1 H W C K L L1 L2 L3 L4 L5 L6 L7 P P1 T ØEA ØEB EC ØFA ØFB FC SW1 SW2 SW3
20
68 40 38 58 32,5 20 23 76 32 79 10 17 108 4 22 12 58 160 15 37 34 37 71 65 8,5
M5 M6 14 6,5 11 6,8 5,5 10 5,7 13 13 6
25
68 40 38 58 32,5 20 23 76 32 79 10 17 108 6 17 12 58 160 15 37 34 37 76 65 8,5
M5 M6 14 6,5 11 6,8 5,5 10 5,7 13 17 6
Supplied with:
1
x fixing nut.
Draw note:
+ = add the stroke
Guides Mod. 45NUT
Suitable for cylinders Series 60 and 61DIN/ISO 6431, ø 32, 40, 50, 63, 80 and 100.
These guides do not need lubrication. For applicable loads, see graph No. 1.
DIMENSIONS (mm)
Ø TF TG TH ØA T1 P FB UF G1 UF1 L C1 H W C L1 WH L2 L3 L4 L5 TL SW1 SW2 SW3
32
78 32,5 58 12 74
M6 6,6 90 45 100 106 48 6 22 12 94 17 7,8 52 48 7,8 32,5 15 17
3
40
84 38 64 12 80
M6 6,6 100 50 106 117 58 7 22 12 105 21 10 53 56 10 38 15 19
6
50
100 46,5 80 16 96
M8 9 120 60 125 129 59 8 26 15 106 25 6,2 64 66 6,3 46,5 22 24
6
63
105 56,5 95 16 104
M8 9 125 70 132 146 76 8 26 15 121 25 9,8 64 76 9,8 56,5 22 24
6
80
130 72 130 20 130
M10 11 155 90 165 170 90 9 32 16 128 34 9 72 98 20 50 27 30
6
100
150 89 150 20 150
M10 11 175 110 185 190 110 9 32 16 138 39 10,5 72 118 20 70 27 30
6
Supplied with:
4
x fixing screws.
Draw note:
+ = add the stroke
